Best ways to move VM from VMware Workstation to ESXI

There are many methods to migrate a virtual machine (VM) from VMware Workstation to an ESXi server. to move a virtual machine (VM) from VMware Workstation to VMware ESXi, you generally need to export the VM from Workstation and then import it into ESXi. or upload the VM directly Here’s a step-by-step guide on how to do this

Method 1: Exporting to OVF/OVA and Importing to ESXi:

Step 1: Exporting the VM from VMware Workstation:

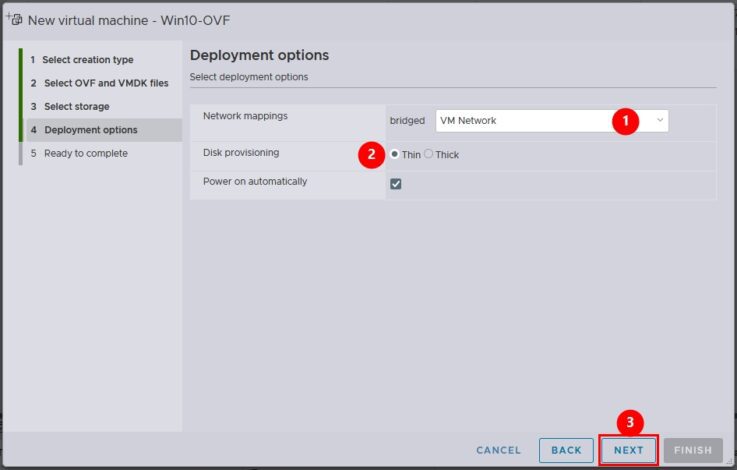

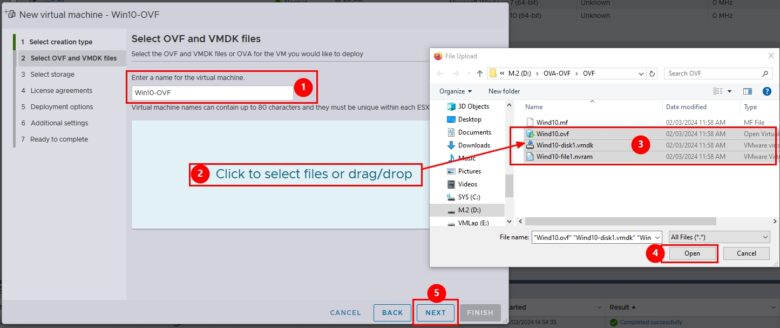

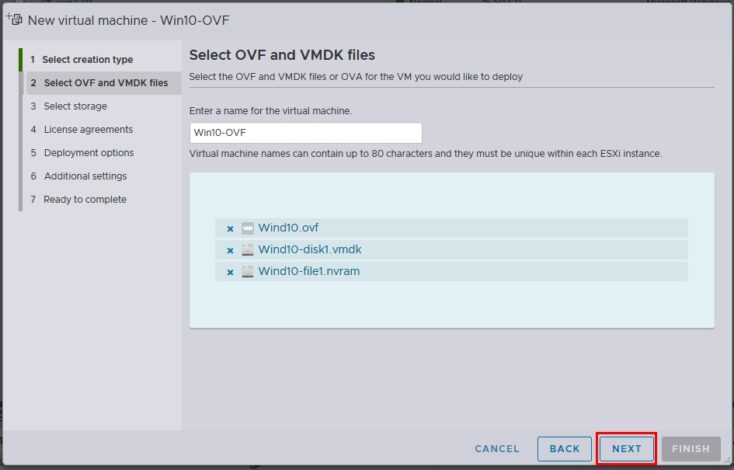

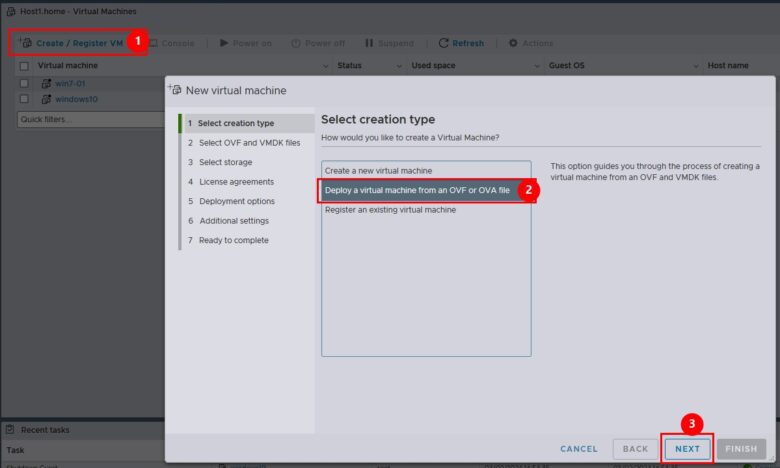

Step 2: Importing the VM to VMware ESXi:

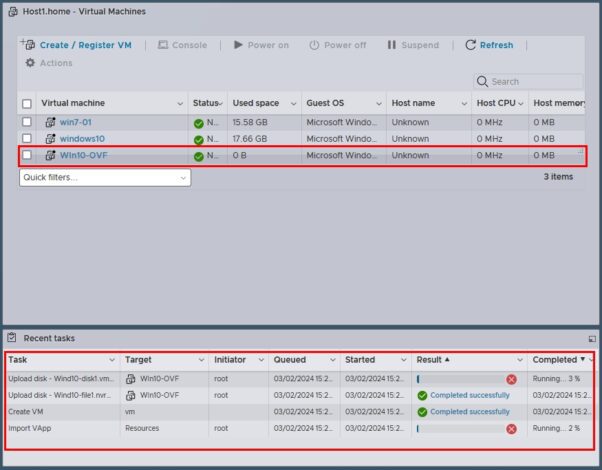

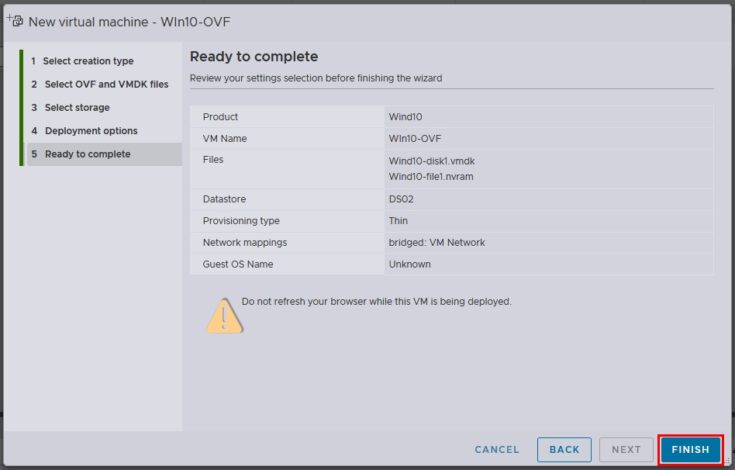

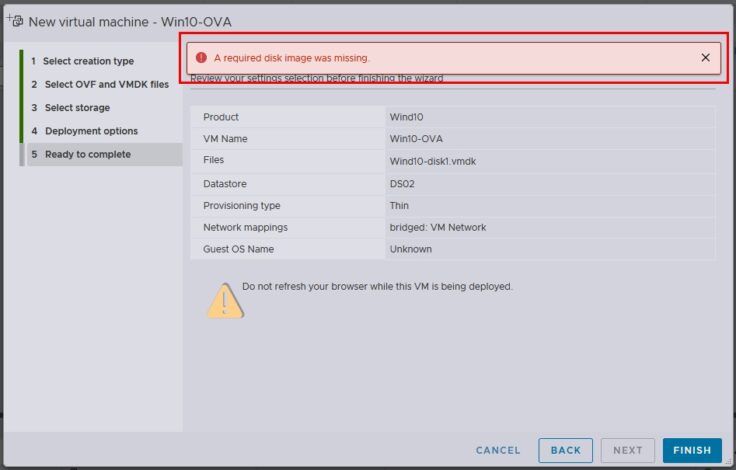

Importing OVA may be shown error but keep forward and press “Finish” will be continued importing

Method 2: Uploading the VM directly to ESXi:

Step 1: Change Hardware Compatibility

  • Power off the VM in Workstation.

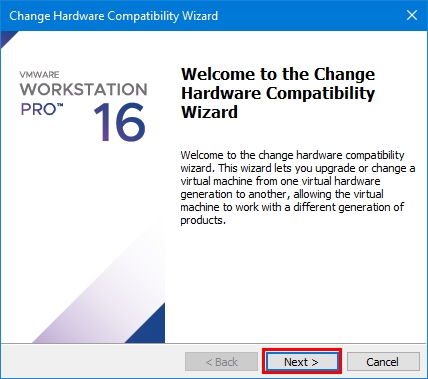

  • Go to VM > Manage > Change Hardware Compatibility.

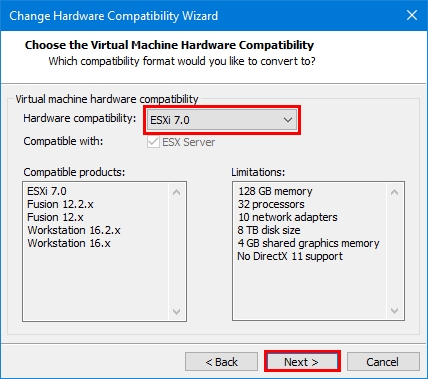

  • Select a compatible version for ESXi and click Next.

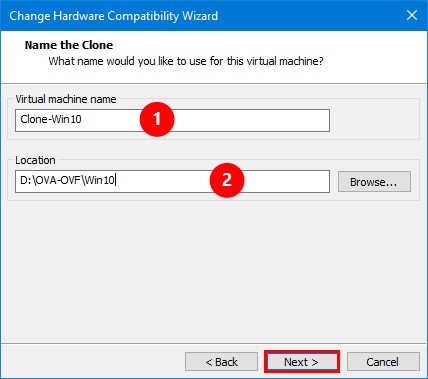

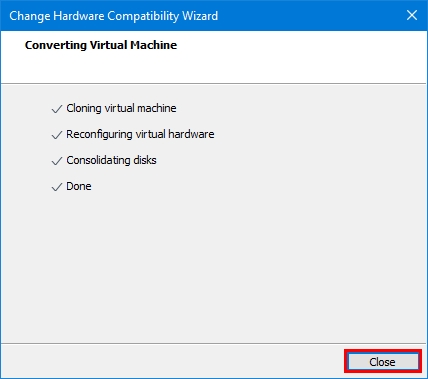

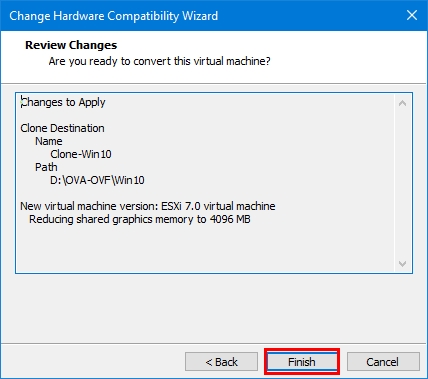

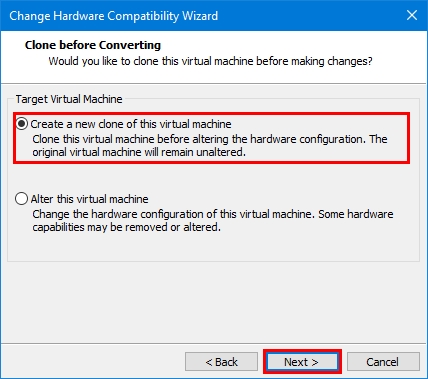

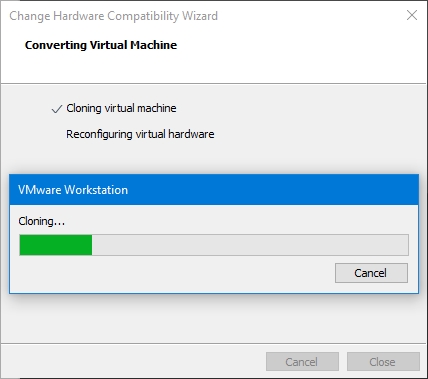

  • Choose to create a new clone or modify the existing VM and click Finish.

Step 2: Upload the VM to ESXi:

  • Right-click on the VM in the Inventory pane. select Manage > Upload.

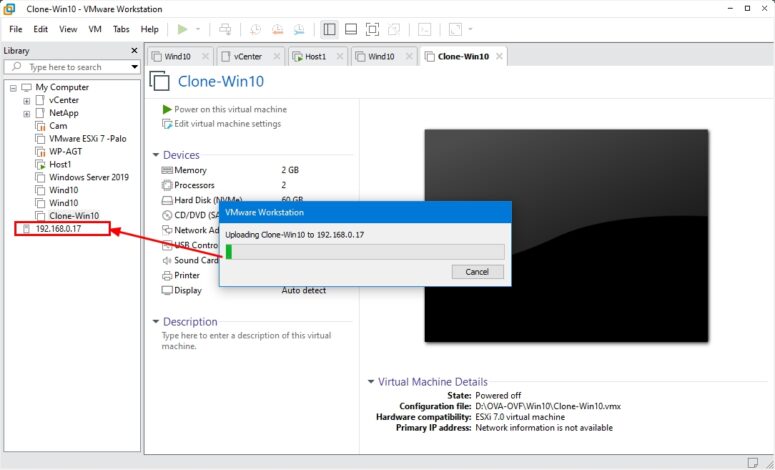

  • Alternatively, drag and drop the VM from the inventory onto the ESXi server.if connected before

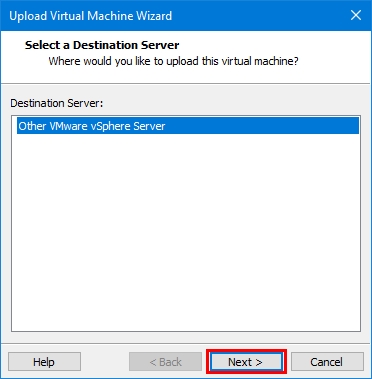

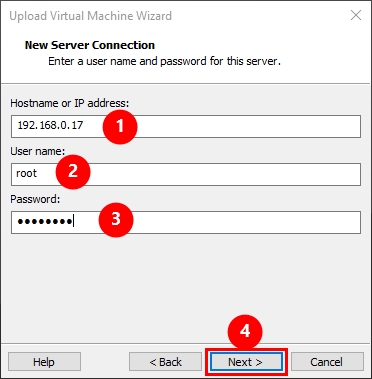

  • Upload Virtual Machine Wizard will guide you through the process.

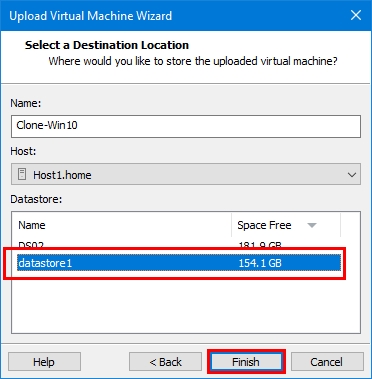

  • Select the target datastore where you want to store the uploaded VM.
  • Provide a new name for the VM on the ESXi server.(Optional)
  • Click Finish to commence the upload.

Method 3: VMware vCenter Converter Standalone

  • We will talk about it soon in a separate article. Follow us

Choosing the Right Method:

  • OVF/OVA export/import: Simple and widely supported, but may require additional steps for configuration.
  • Direct upload: Faster and more efficient for simple migrations, but requires hardware compatibility adjustments.

Additional Notes:

  • Make sure that the version of VMware Workstation you’re using is compatible with the version of ESXi you’re running.
  • Ensure that the VM hardware version is compatible with ESXi. You may need to upgrade the hardware version if it’s too old.
  • Verify that the network settings and any other configurations specific to your VM are correctly configured in ESXi after the migration.
  • Always have backups of your VM files before performing any migration or major changes.

By following these steps, you should be able to successfully move a VM from VMware Workstation to VMware ESXi.
