How-to: Install Active Directory Domain Services (AD DS) with a New Forest | PowerShell | Install Active Directory Domain Services Powershell

In a previous article How to: Install Active Directory Domain Services (AD DS) with a New Forest | Best Practices , we installed Active Directory Domain Services (AD DS) for a new forest, step by step, and to complete the topic, we will do the same installation, but using the PowerShell command line.

To install Active Directory Domain Services (AD DS) with a new forest using PowerShell and set the domain name as welcomeadmin.local, follow these step-by-step instructions:

Step 1: Prerequisites

local Administrator password must meet requirements

Verification of prerequisites for Domain Controller promotion will be failed. if The password of local Administrator account that will become the domain Administrator account not meet requirements. so you should change it Or run this commend¹

net user Administrator /passwordreq:yes

1	net user Administrator /passwordreq:yes

Rename Server

Rename-Computer -NewName DC01

1	Rename-Computer -NewName DC01

Always run PowerShell with administrative privileges when making changes to network configurations.

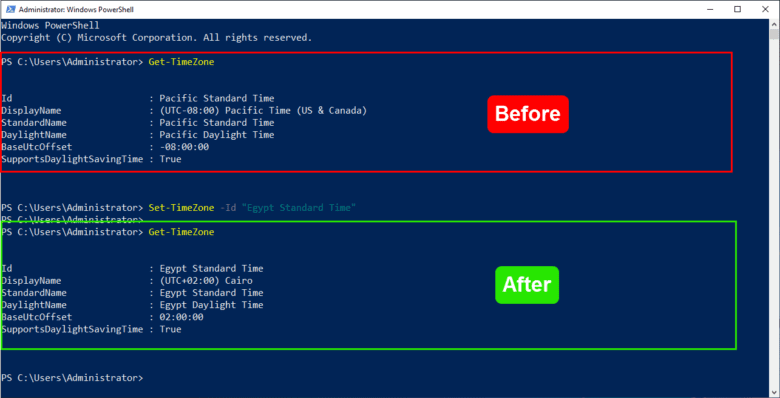

Configure Time Zone

Get-TimeZone
Set-TimeZone -Id "Egypt Standard Time"

1 2	Get-TimeZone Set-TimeZone -Id "Egypt Standard Time"

Verify Time Zone:

Get-TimeZone

1	Get-TimeZone

Configure TCP/IP

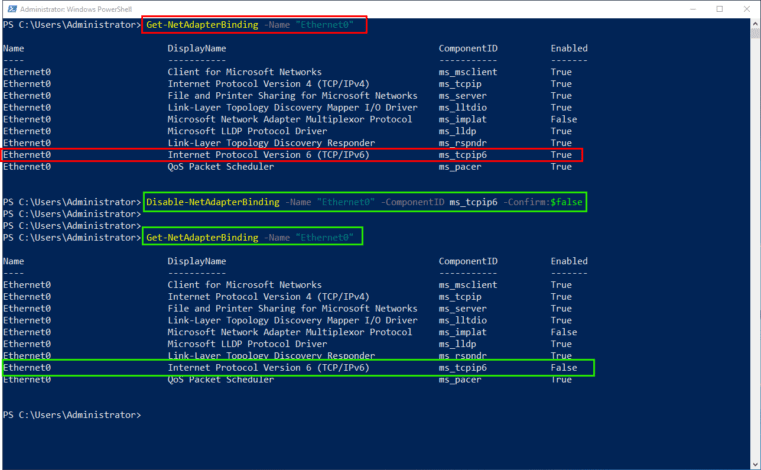

Uncheck IPv6 on TCP/IP settings in Windows Server, you typically go through the network adapter properties. Here’s how you can do it:

Get-NetAdapterBinding -Name "Ethernet0"
Disable-NetAdapterBinding -Name "Ethernet0" -ComponentID ms_tcpip6 -Confirm:$false

1 2	Get-NetAdapterBinding -Name "Ethernet0" Disable-NetAdapterBinding -Name "Ethernet0" -ComponentID ms_tcpip6 -Confirm:$false

Set IP Address, Subnet Mask, and Gateway

$IPAddress = "192.168.0.5"
$SubnetMask = "255.255.255.0"
$Gateway = "192.168.0.1"

New-NetIPAddress -InterfaceAlias "Ethernet0" -IPAddress $IPAddress -PrefixLength 24 -DefaultGateway $Gateway

$IPAddress = "192.168.0.5"

$SubnetMask = "255.255.255.0"

$Gateway = "192.168.0.1"

New-NetIPAddress -InterfaceAlias "Ethernet0" -IPAddress $IPAddress -PrefixLength 24 -DefaultGateway $Gateway

New-NetIPAddress –IPAddress 192.168.0.5 -DefaultGateway 192.168.0.1 -PrefixLength 24 -InterfaceIndex (Get-NetAdapter).InterfaceIndex

1	New-NetIPAddress –IPAddress 192.168.0.5 -DefaultGateway 192.168.0.1 -PrefixLength 24 -InterfaceIndex (Get-NetAdapter).InterfaceIndex

Replace “Ethernet0” with the appropriate network interface alias if it’s different on your system.

Set Primary and Secondary DNS Servers

$PrimaryDNS = "192.168.0.5"
$SecondaryDNS = "8.8.8.8"

Set-DnsClientServerAddress -InterfaceAlias "Ethernet0" -ServerAddresses $PrimaryDNS,$SecondaryDNS

$PrimaryDNS = "192.168.0.5"

$SecondaryDNS = "8.8.8.8"

Set-DnsClientServerAddress -InterfaceAlias "Ethernet0" -ServerAddresses $PrimaryDNS,$SecondaryDNS

Set-DNSClientServerAddress –InterfaceIndex (Get-NetAdapter).InterfaceIndex –ServerAddresses 192.168.0.5

1	Set-DNSClientServerAddress –InterfaceIndex (Get-NetAdapter).InterfaceIndex –ServerAddresses 192.168.0.5

Verify TCP/IP Setting

To verify that the settings have been applied correctly, you can use PowerShell cmdlets to check the network configuration:

ipconfig /all

1	ipconfig /all

Step 2: Install the AD DS Role and Feature

Run the following PowerShell command to install the AD DS role:

Install-WindowsFeature -Name AD-Domain-Services -IncludeManagementTools

1	Install-WindowsFeature -Name AD-Domain-Services -IncludeManagementTools

Step 3: Promote the Server to a Domain Controller 2. Create New Forest:

Use the following PowerShell command to promote the server to a domain controller:

Install-ADDSForest `
   -SafeModeAdministratorPassword (ConvertTo-SecureString "P@ssw0rd" `
   -AsPlainText -Force) `
   -DomainName "welcomeadmin.local" `
   -DomainNetbiosName "welcomeadmin" `
   -ForestMode "WinThreshold" `
   -DomainMode "WinThreshold" `
   -CreateDnsDelegation:$false `
   -InstallDns = $true `
   -DatabasePath "C:\Windows\NTDS" `
   -LogPath "C:\Windows\NTDS" `
   -SysvolPath "C:\Windows\SYSVOL" `
   -Force:$true

Install-ADDSForest `

-SafeModeAdministratorPassword (ConvertTo-SecureString "P@ssw0rd" `

-AsPlainText -Force) `

-DomainName "welcomeadmin.local" `

-DomainNetbiosName "welcomeadmin" `

-ForestMode "WinThreshold" `

-DomainMode "WinThreshold" `

-CreateDnsDelegation:$false `

-InstallDns = $true `

-DatabasePath "C:\Windows\NTDS" `

-LogPath "C:\Windows\NTDS" `

-SysvolPath "C:\Windows\SYSVOL" `

-Force:$true

$Params = @{
DomainName = 'welcomeadmin.local'
DomainNetbiosName = 'welcomeadmin'
ForestMode = '7'
DomainMode = '7'
CreateDnsDelegation = $false
InstallDns = $true
LogPath = 'C:\Windows\NTDS'
DatabasePath = 'C:\Windows\NTDS'
SysvolPath = 'C:\Windows\SYSVOL'
NoRebootOnCompletion = $true
SafeModeAdministratorPassword = (ConvertTo-SecureString "P@ssw0rd" -AsPlainText -Force)
Force = $true
}
Install-ADDSForest @Params

$Params = @{

DomainName = 'welcomeadmin.local'

DomainNetbiosName = 'welcomeadmin'

ForestMode = '7'

DomainMode = '7'

CreateDnsDelegation = $false

InstallDns = $true

LogPath = 'C:\Windows\NTDS'

DatabasePath = 'C:\Windows\NTDS'

SysvolPath = 'C:\Windows\SYSVOL'

NoRebootOnCompletion = $true

SafeModeAdministratorPassword = (ConvertTo-SecureString "P@ssw0rd" -AsPlainText -Force)

Force = $true

}

Install-ADDSForest @Params

There’s no a new domain or forest functional level for Windows Server 2019, 2022 so an acceptable values for this parameter are:

Windows Server 2003: “2” or “Win2003”
Windows Server 2008: “3” or “Win2008”
Windows Server 2008 R2: “4 or “Win2008R2”
Windows Server 2012: “5” or “Win2012”
Windows Server 2012 R2: “6” or “Win2012R2”
Windows Server 2016, 2019, 2022: “7” or “WinThreshold”

After the installation completes, restart the server to apply the changes.

Verify Installation

To ensure that Active Directory Domain Services is installed correctly, you can perform the following to

Check AD DS Installation:

Open PowerShell as Administrator.
Run the following command to import the Active Directory module:

Import-Module ActiveDirectory

1	Import-Module ActiveDirectory

Run the following command to verify that the AD DS role is installed:

Get-WindowsFeature -Name AD-Domain-Services

1	Get-WindowsFeature -Name AD-Domain-Services

Verify Domain Creation:

On the server, open Server Manager.
Navigate to Tools > Active Directory Users and Computers.
In the Active Directory Users and Computers window, expand the “welcomeadmin.local” domain to verify its existence.

Check DNS Configuration:

Open PowerShell as Administrator.
Run the following command to check DNS settings:

Get-DnsServerZone | Where-Object { $_.ZoneName -eq "welcomeadmin.local" }

1	Get-DnsServerZone \| Where-Object { $_.ZoneName -eq "welcomeadmin.local" }

Test Domain Controller Functionality

Join a test machine to the “welcomeadmin.local” domain to ensure that domain controller functionality is operational.

Congratulations! You have successfully installed Active Directory Domain Services with a new forest named “welcomeadmin.local” using PowerShell. Perform the verification steps to ensure that everything is configured correctly.
